BERGQUIST SIL PAD TSP 1800
Henkel
material features a non-tacky surface for efficient re-positioning and ease of use, as well as an optional adhesive coating
Following Dimensions are available
(Delivery form, Thickness, Width, Length)
roll 0.23 305 76.20
sheet 0.23 305 305.00
roll 0.30 305 76.20
sheet 0.25 305 305.00
roll 0.41 305 76.20
sheet 0.25 305 305.00
Also available with Adhesive on one side
roll 0.23 305 76.20
sheet 0.23 305 305.00
roll 0.30 305 76.20
sheet 0.25 305 305.00
roll 0.41 305 76.20
sheet 0.25 305 305.00
Also available with Tacky surfaces on both sides
roll 0.20 254 76.20
sheet 0.20 254 305.00
This material can be cutted by the Bodo Möller Cutting Competence Center according to your template
- Thermal impedance: 0.53°C-in2/W (@50 psi)
- Exceptional thermal performance at lower application pressures
- Superior breakdown voltage and surface "wet out" values
- Smooth and non-tacky on both sides for easy re-positioning, ease of use and assembly error reduction
Availability: on demand

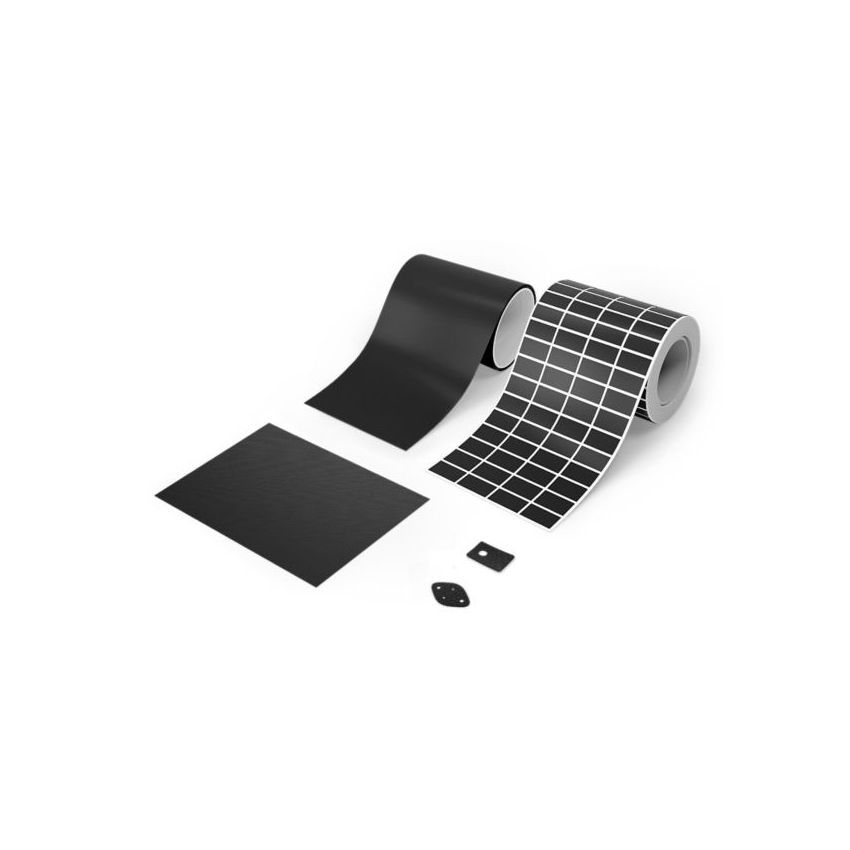

BERGQUIST SIL PAD TSP 1800, Exceptional Performance, Silicone based, Fiberglass-reinforced, Thermally Conductive Elastomeric Material
Safety Data Sheet (SDS) on request
