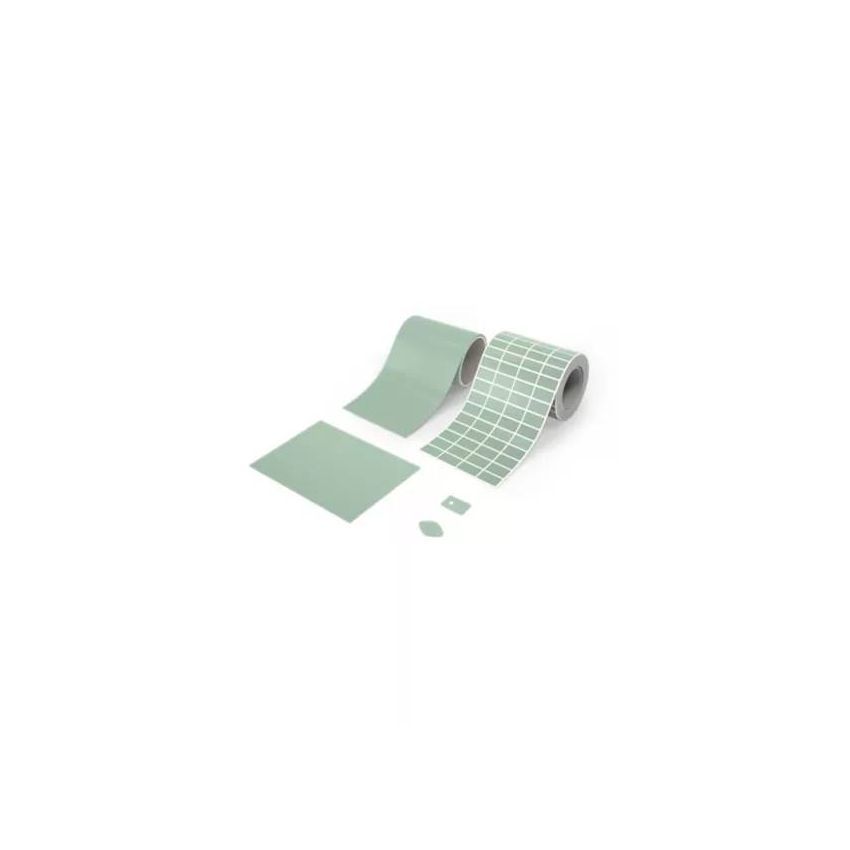

BERGQUIST SIL PAD TSP A2000

Henkel
BERGQUIST SIL PAD TSP A2000 performs well under clamping pressure up to 200 psi and is an excellent choice for high performance applications requiring electrical isolation and cut-through Following Dimensions with a natural tack on both sides are available (Delivery form, Thickness, Width, Length) sheet 0.25 203 406.00 sheet 0.38 203 406.00 sheet 0.51 203 406.00 sheet 1.02 203 406.00 Dry surface on both sides roll 0.25 305 76.20 sheet 0.25 305 305.00 Also available with Adhesive on one side (Delivery form, Thickness, Width, Length) roll 0.25 305 76.20 sheet 0.25 305 305.00 This material can be cutted by the Bodo Möller Cutting Competence Center according to your template
  • Thermal impedance: 0.42°C-in2/W (@50 psi)
  • Elastomeric compound coated on both sides
  • Less sensitive to clamping pressure because of its smooth surface finish
Availability: on demand
Persönliche Beratung
BERGQUIST SIL PAD TSP A2000, Electrically Insulating, Silicone based, Thermally Conductive Elastomeric Material

Safety Data Sheet (SDS) on request

/H/e/Henkel_5022.jpg
/b/e/bergquist_logo_png__1__7669.jpg
BERGQUIST SIL PAD TSP A2000 performs well under clamping pressure up to 200 psi and is an excellent choice for high performance applications requiring electrical isolation and cut-through Following Dimensions with a natural tack on both sides are available (Delivery form, Thickness, Width, Length) sheet 0.25 203 406.00 sheet 0.38 203 406.00 sheet 0.51 203 406.00 sheet 1.02 203 406.00 Dry surface on both sides roll 0.25 305 76.20 sheet 0.25 305 305.00 Also available with Adhesive on one side (Delivery form, Thickness, Width, Length) roll 0.25 305 76.20 sheet 0.25 305 305.00 This material can be cutted by the Bodo Möller Cutting Competence Center according to your template
More Information
BMC internal key BERGQUIST SIL PAD TSP A2000
Regional availability on demand
Brands BERGQUIST®
